Peter R Greene1 ,Otis S Brown2 ,Vladimir Medved3,Zachary W Grill4
1B.G.K.T. Consulting Ltd. Bioengineering Huntington, New York.
2Optics, C & O Research Waynesboro, Penn.
3Faculty of Kinesiology, Electrical Engineering & Computing, University of Zagreb, Croatia.
4Psychology Temple University Philadelphia, Penn.
Corresponding Author: Peter R Greene, B.G.K.T. Consulting Ltd. Bioengineering Huntington, New York, 11743, Tel: +1 631 935 56 66; E-Mail: [email protected]
Received Date: 29 Oct 2016 Accepted Date: 02 Nov 2016 Published Date: 15 Nov 2016
Copyright © 2016 Greene PR
Citation: Greene PR, Brown OS, Medved V and Grill ZW. (2016). Reading Glasses to Prevent Myopia. Mathews J Ophthalmol. 1(2): 008.
Preliminary experimental design using reading glasses at the U.S. Naval Academy at Annapolis are discussed. The conclusion is that (+) add lenses, used as reading glasses during study, can prevent the development of myopia for college students in pilot training.
Progressive Myopia; Reading Glasses; Bifocals; Progressive Add Lenses (PALS); Refraction; Myopia Prevention; Diopters.
Cheng et al. [1, 2] (2011, 2014) and Gwiazda et al. and Hyman et al. [3, 3a, 4] (2003, 2005,2014) present a comprehensive listing of modern studies to date in terms of using (+) Add reading glasses to prevent or slow the progression of myopia. Brown & Berger (1979), Brown & Young (1981), Schaeffel & Howland (1988), Medina & Fariza (1993), and Greene, Brown, Medina & Graupner (1996) use first order control theory to predict myopia development as a function of time [5-9]. Thorn, Gwiazda & Held (2005) present a mathematical model of myopia development using the Gompertz function . Hung & Ciuffreda (2007) develop IRDT, incremental retinal defocus, to explain myopia during the growth phase . Medina et al. [12-14] (2015, 2016) and Greene & Medina [15-18] (2015, 2016) use control theory to explain myopia development, solved with digital and analog computer techniques to evaluate first-order equations. Viikari (2011) and Goldschmidt (2003) present comprehensive reviews of juvenile myopia, and various techniques used to control this myopia progression [19, 20]. Theories are many and varied, in terms of the causes of myopia [19, 20]. Figure 1a and 1b below show the nearwork demand problem, typical of college students, and the proposed optical solution to the problem, namely, custom reading glasses . In this report, various mathematical control theories are reviewed, derived from conventional electrical engineering concepts, as shown in Figure 1c below:
Figure 1a: Norman Rockwell’s “The Law Student”, from the Saturday Evening Post, is seen reading at an effective distance of -3.0 to -4.0 diopters.
Figure 1b: Reading glasses for a -5.00 D. college myope. (+) Add technology is used by both bifocals and progressive addition lenses, “PAL’s”. PAL’s are “no-line” bifocals. Basically, these (+) Add reading glasses are distance compensators, with a +3.00 D Add for reading.
The Average Value of Accommodation
The controlling variable for this equation is the eye’s value of accommodation. The focal settings of the lens is determined by information decoded at the surface of the retina. The visual environment may be calculated by the use of the equation: VISUAL ENVIRONMENT = - 1 / (OBJECT DISTANCE) (In Diopters) (In Meters) A visual object moved inwards from infinity to one meter constitutes an environment change of - 1.0 diopters. Under this circumstance, the accommodation system will servo the lens by + 1.0 diopters to again achieve sharp focus at the surface of the retina. Visual Environment of College Students. As we enter higher academic institutions, our visual environment gradually shifts to a more negative value, as shown in Figure 1c below. We can characterize this increased “near” environment by the following ramp function:

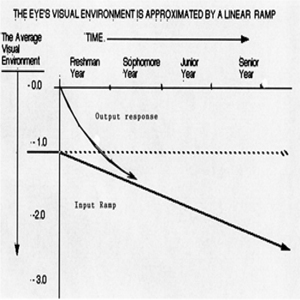

Figure 1c: Ramp function A = m t + b
A = m t + b, where: A = Accommodation, daily average value, from the start of the freshman year. m = - 0.001 diopters / day = - 0.365 D/yr t = time in days b = - 1.0 diopters The Laplace transform of a unit ramp is: 1 / (s ^2) Applying this ramp to the eye’s transfer function produces: System’s Response = [m / s ^2] * [1 / (TAU s + 1)] The eye’s time domain response to a ramp function is 30: Focus = Offset Accommodation (Initial Value) (Ramp) + Accommodation * TAU [(t / TAU) - 1 + EXP (- t / TAU)]
Focal Status Produced by a Plus Lens
After two hundred days, this equation predicts that the eye will show the same linear slope as the accommodation ramp. We can logically expect that the eyes of college students will show a gradual movement towards, and eventually, into myopia when a linear ramp is applied to their accommodation system. How close does this scenario match the actual situation? In a study of the cadets at West Point, Dr. Gmelin determined that freshmen with 20/20 vision and 0 diopters focal state would, after four years, develop 20/80 vision with -1.3 diopters of myopia . A similar study was conducted at the United States Naval Academy by Dr. Hayden, reviewed by Greene et al. [15, 16, 23, 24] (2015, 2016). This study showed an approximately linear change in focal status towards myopia in the eyes of almost all the normal eyed midshipmen [22, 25, 26]. Figure 1a shows Norman Rockwell’s classic painting “The Law Student”, from the Saturday Evening Post, where the student is seen reading at an effective distance of -3.0 to -4.0 diopters.
We have plotted the historical development of myopia as a function of time, as shown in Figure 4d. The dynamic theory explicitly states that the eyes of the USNA midshipmen move into nearsightedness due to their increasingly confined visual environment. Their focal status change is in the right direction and proper magnitude to suggest quantitative verification for this dynamic model of the normal eye’s long-term behavior. If their myopia is a result of normal servoing action, a major means of changing this situation would be to use a convex lens for all close work. Use of this lens would substantially alter their visual environment from an estimated value of - 1.5 diopters, to a more reasonable figure of - 0.4 diopters. Their resulting focal status was calculated by the use of the equation developed [5, 6, 26].
Work done during the past twenty years has demonstrated that the accommodation system is a superb example of a physiological control system. It is a complex, sophisticated, and accurate system. We can logically expect that the normal eye will show equal competence in the design of its long-term control system. The process of building a mathematical model of a physiological system necessarily implies the idealization of that system. Models are not tested in a vacuum. The development of a servo-heredity model suggests an alternative model which we will call, for the purpose of identification and discussion, a “negative-lens-heredity” theory of the eye’s long-term focus. Heredity is a fundamental factor in both of these theories. There is a disagreement on how this factor establishes the eye’s long-term focus. These theories yield contradictory predictions that can be tested. The negative-lens theory predicts that:
A number of these stated predictions have been tested. We feel that the current experimental evidence more strongly supports the concept that the eye is servo controlled versus the concept that the eye is not servo controlled. Actual myopia prevention is a very difficult task to accomplish. This demonstrates that effective myopia prevention is a reasonable expectation, provided the convex lens is assiduously used for all close work. The belief that this approach will work is reflected in current eye care practices [1-4, 19-24, 30-35]. About twenty percent of the profession will use the plus lens (bifocal) to deal with the problem of incipient myopia.
Appendix I: Student Refraction Data R (t) [D], 9 Month Interval.
|Subj||0 months||After 9 months|
|# No.||Begin||Control group||Test group (+) Add|
|#1 L||-0.75 D||-1.25 D|
|R||-0.50 D||-1.00 D|
|#5 L||-0.50 D||+0.25 D|
|R||-0.75 D||0.00 D|
|< aver>||-0.71875 D||-1.0625 D||+0.3125 D||p< 0.0001|
|< +/- s.d. >||0.23935 D||0.176777 D||0.17677 D||t = -15.5563|
|N = 16||N = 8||N = 8||df = 14|
Table 2: Student Pilot Refraction Data R(t) [D], 9 month interval
|Subj||Start||After 9 months|
|(+) Add Test Group||(-) Control Group|
|#1 L||-0.5 D||+0.25 D|
|R||-0.75 D||+0.25 D|
|#5 L||-0.75 D||-1.25 D|
|R||-0.50 D||-1.00 D|
|< aver.>||-0.6875 D +0.1875 D||-1.03125 D||t = 12.606|
|< +/- s.d.>||0.19365 D||0.17677 D||0.20863 D||p < 0.0001|
|N=16||N=8||N=8||df = 14|
Appendix II: Refraction Data R (t) [D] for Age-Brackets 6 – 18 yrs.
|Age Bracket (+)||Test Group||(-) Control Group||Significance|
|6 - 8 yr||+0.06 D, N=22||0.65 D, N=102||p < 0.0001|
|df=122||+/- 0.27 D||+/- 0.44 D||t = 7.2654|
|difference dR = 0.71 D [ 95% CI: 0.52 to 0.90 D ( N = 124 ) ]|
|9 – 10 yr||0.00 D, N=28||-0.56 D, N=82||p < 0.0001|
|df=108||+/- 0.23 D||+/- 0.36 D||t = 7.6992|
|difference dR = 0.56 D [ 95% CI: 0.42 to 0.70 D ( N = 110 ) ]|
|10 – 11 yr||-0.04 D, N=50||-0.58 D, N = 100||p < 0.0001|
|df = 148||+/-0.16 D||+/-0.37 D||t = 9.8565|
|difference dR = 0.54 D [ 95% CI: 0.43 to 0.65 D ( N = 150) ]|
|11 – 12 yr||+/- 0.2 D||+/- 0.34 D||t = 7.2773|
|difference dR = 0.37 D [ 95% CI: 0.27 to 0.47 D ( N = 164 ) ]|
|12 – 13 yr||-0.06 D, N = 56||-0.59 D, N = 126||p < 0.0001|
|df = 180||+/- 0.17 D||+/- 0.42 D||t = 9.1062|
|difference dR = 0.53 D, [ 95% CI: 0.42 to 0.64 D (N=182) ]|
|13 – 14 yr||-0.06 D, N = 88||-0.49 D, N = 74||p < 0.0001|
|df = 160||+/- 0.15 D||+/- 0.3 D||t = 11.8091|
|difference dR = 0.43 D, [ 95% CI: 0.36 to 0.50 D (N=162) ]|
|14 – 15 yr||-0.03 D, N = 34||-0.42 D, N = 64||p < 0.0001|
|df = 96||+/- 0.14 D||+/- 0.32 D||t = 6.7585|
|difference dR = 0.39 D [ 95% CI: 0.27 to 0.50 D ( N=98 ) ]|
|15 – 16 yr||+0.02 D, N = 66||-0.42 D, N = 50||p < 0.0001|
|df = 114||+/- 0.18 D||+/- 0.33 D||t = 9.1851|
|difference dR = 0.44 D [ 95% CI: 0.35 o 0.54 D ( N=116 ) ]|
|16 – 17 yr||+0.03 D, N = 36||-0.39 D, N = 24||p < 0.0001|
|df = 58||+/- 0.2 D||+/- 0.19 D||t = 8.1276|
|difference dR = 0.42 D [ 95% CI: 0.32 to 0.52 D ( N=60 ) ]|
|17 – 18 yr||+0.21 D, N = 20||-0.26 D, N = 32||p < 0.0001|
|df = 50||+/- 0.37 D||+/- 0.20 D||t = 5.9490|
|difference dR = 0.47 D [ 95% CI: 0.31 to 0.63 D ( N = 52 ) ]|
|(-) Control Group||(+) Lens Test Group|
|Myopia Rates||R’= -0.48 D/yr||R’ = +0.01 D/yr||p < 0.0001|
|+/- 0.12 D/yr (N=383)||+/- 0.08 D/yr (N=226)|
Partial support for this work was provided by NIH NEI Grant EY 005013 at the Depts. of Biomedical Engineering and Ophthalmology at Johns Hopkins University. The authors would like to thank Jacob Raphaelson, David Guyton, Antonio Medina, Karel Montor and Sterling Colgate for many helpful discussions. Special thanks to Prof. Francis A. Young for providing the Appendix data above.
